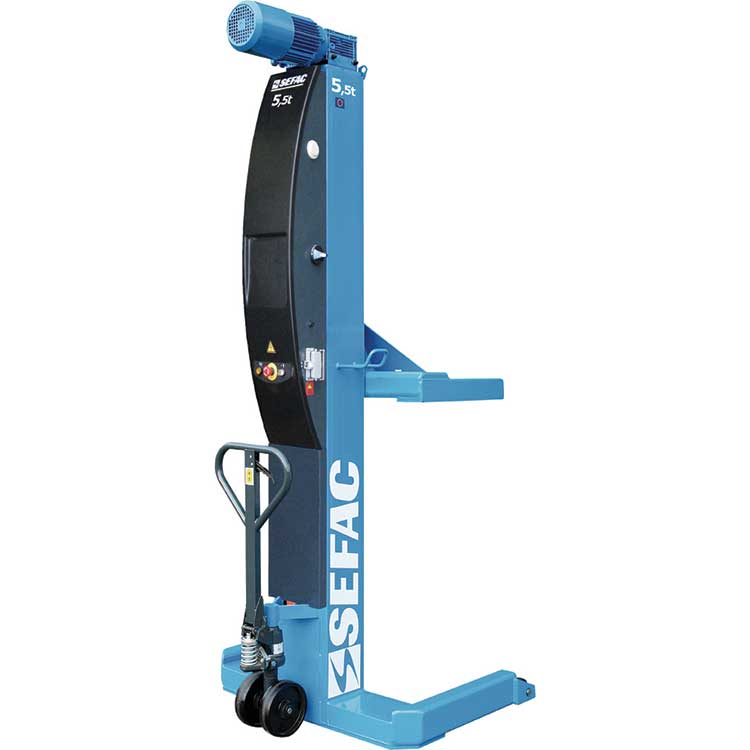

Mobile column lift - 5,5t
PME 55
SEFAC’s mobile lift columns are designed to lift loads of 5.5t per column across a wide range of vehicles with tyre diameters from 600 mm to 1,486 mm*. The PME 55 SV is available with looped inter-connecting cables configurable in sets of 2, 4, 6 and up to 8 columns.
*with wheel adaptors
SEFAC’s irreversible screw & bronze nut technology prevents the forks from lowering without the mechanical activation of the motor, thus preventing any risk of the load dropping. It is the most reliable safety system! The screw works in traction which eliminates the problem of buckling which occurs frequetly in hydraulics. These features realise long service life of your columns with reduced maintenance costs.
SEFAC++ features
- The lightest columns on the market, streamlined by design and easy to manoeuvre
- Irreversible system that prevents the risk of falling
- Maximum safety for operators
- No risks of damage to the vehicle as there is no hydraulic mast
- Reverse pallet truck-type drawbar, deadman’s control
- Obstacle detection
- Patented bronze nut quick change device, worn nuts can be changed at your site within minutes
- Electrical protection: IP54
*with wheel adaptors
Read about our technological solutions: Screw/nut system
Technical characteristics
| PME 55 SV | |
| Capacity per column | 5,5t |
| Configuration (number of columns connected) | 2 / 4 / 6 / 8 |
| Connection mode | Loop - Wired |
| Operating mode | Individual, pair, set |
| Control mode | Remote control |
| Screen |
No |
| Fork width | 962 mm to 1 154 mm |
| Lifting speed | 500 mm/min |
| Descent speed | 500 mm/min |
| Lifting height | 1 820 mm |
| Height difference correction | Default +-50mm |
| Spacing (l x L x h) | 1 055 mm x 1 050 mm x 2 535 mm |
| Feet height | 140 mm |
| Weight per column | 325 kg |
| Engine power | 2,2 kW |
| Protection rating | IP54 |
| Use | Bus, Car, Tractors |
| Options |
Wheel adaptors LED lights Rail claw |
