Lifting equipment for Heavy Duty vehicles

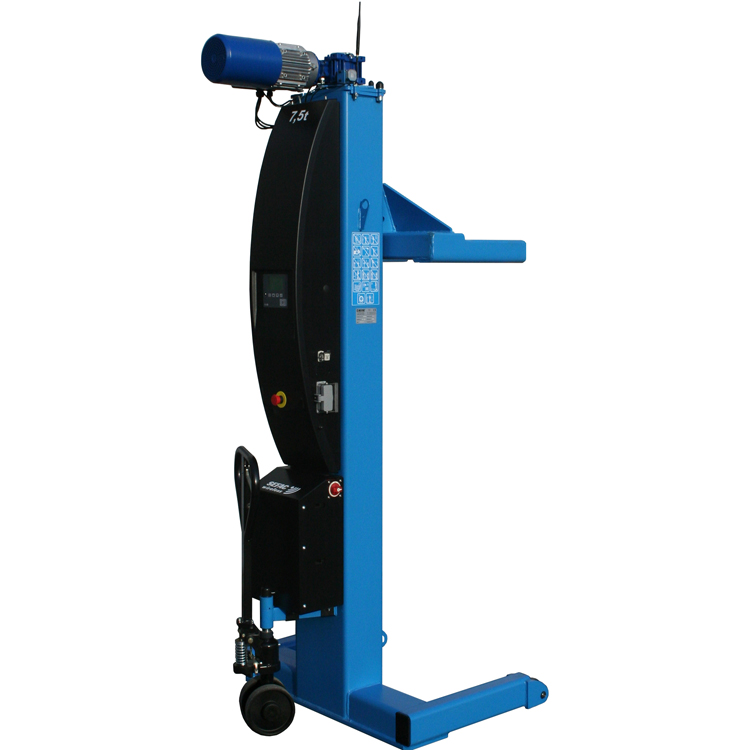

Wireless column lift - 7,5t

PME 75 SW

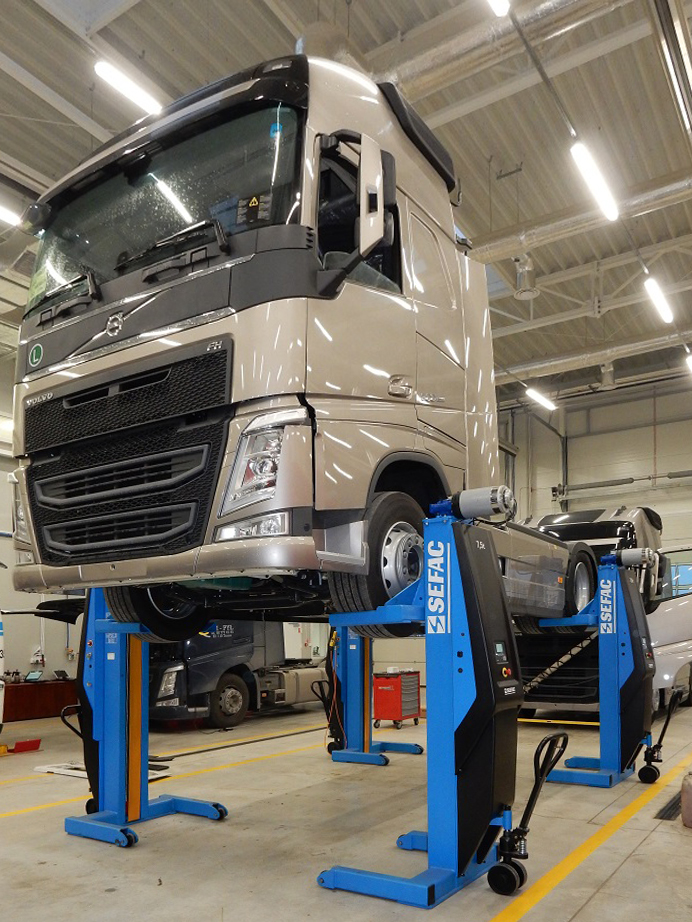

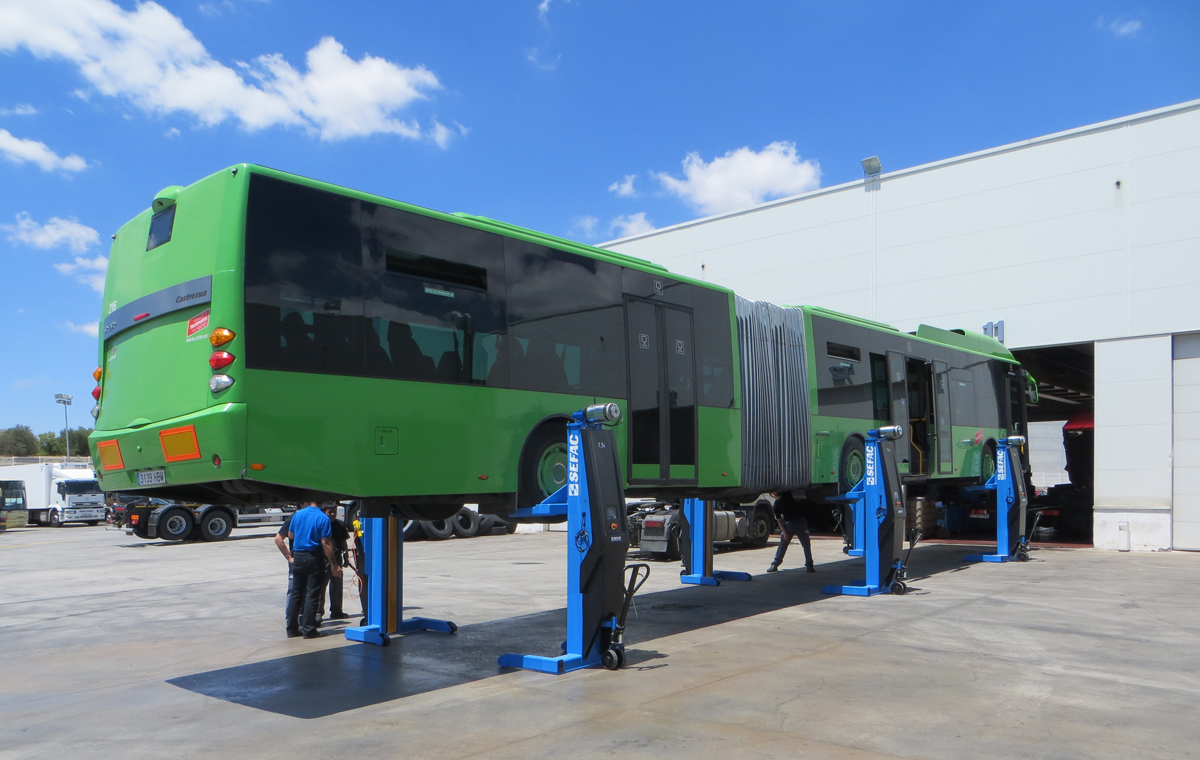

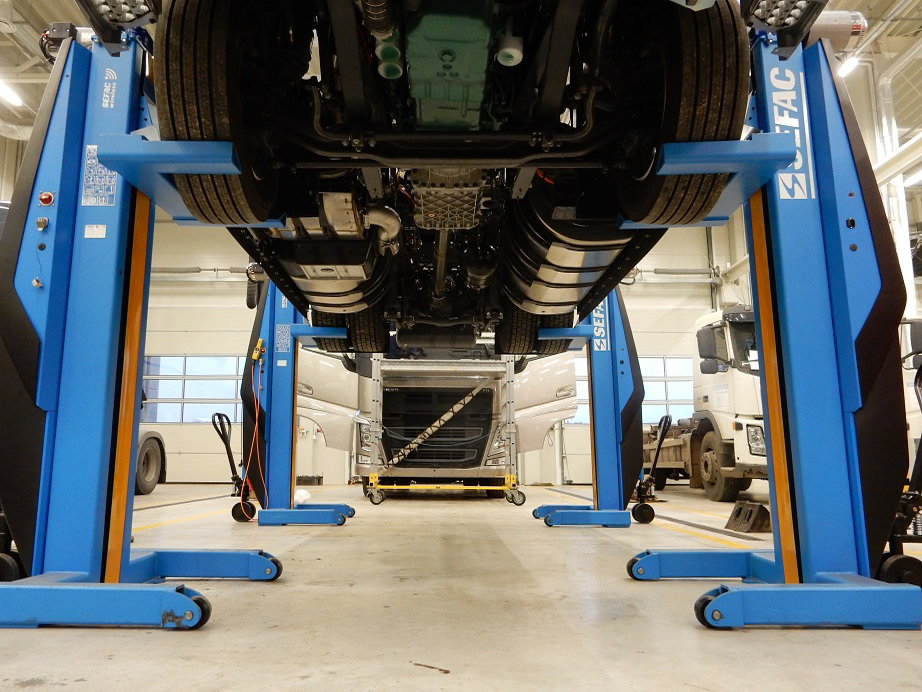

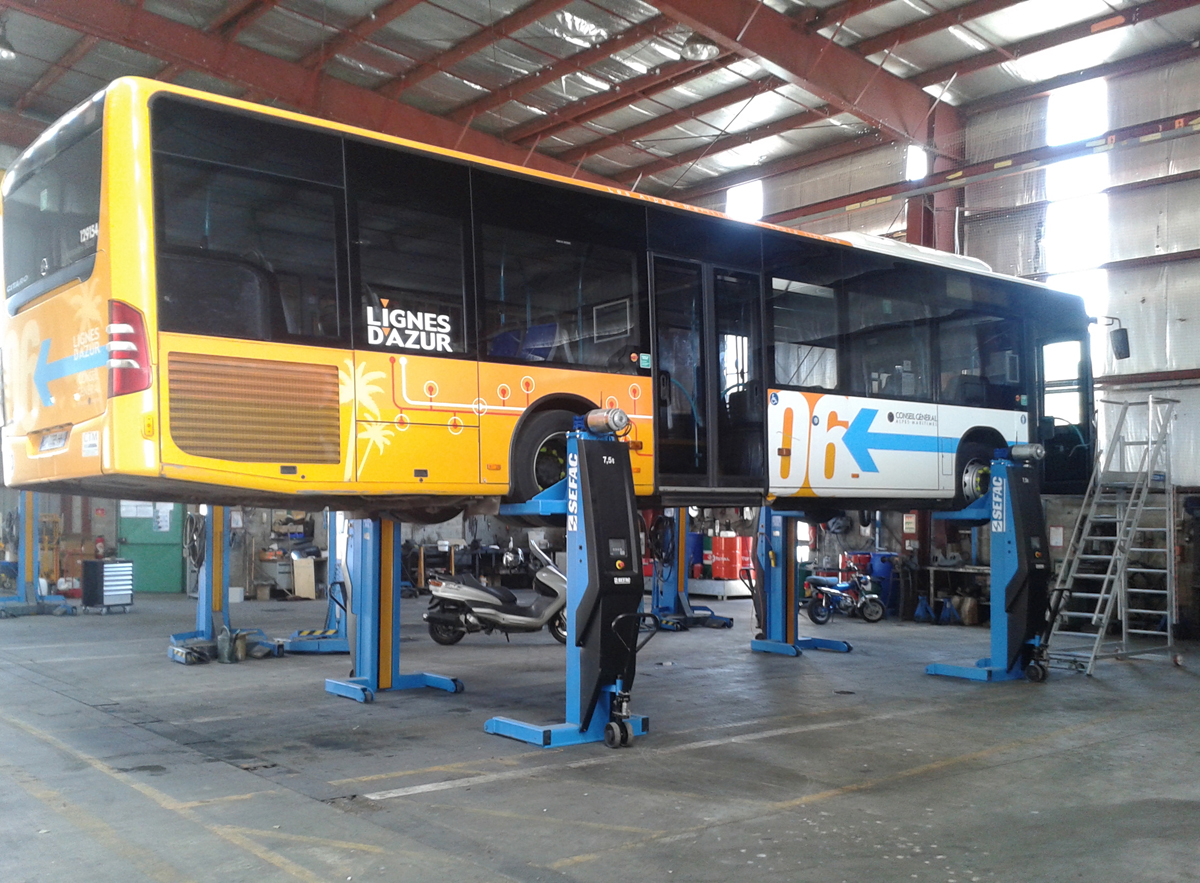

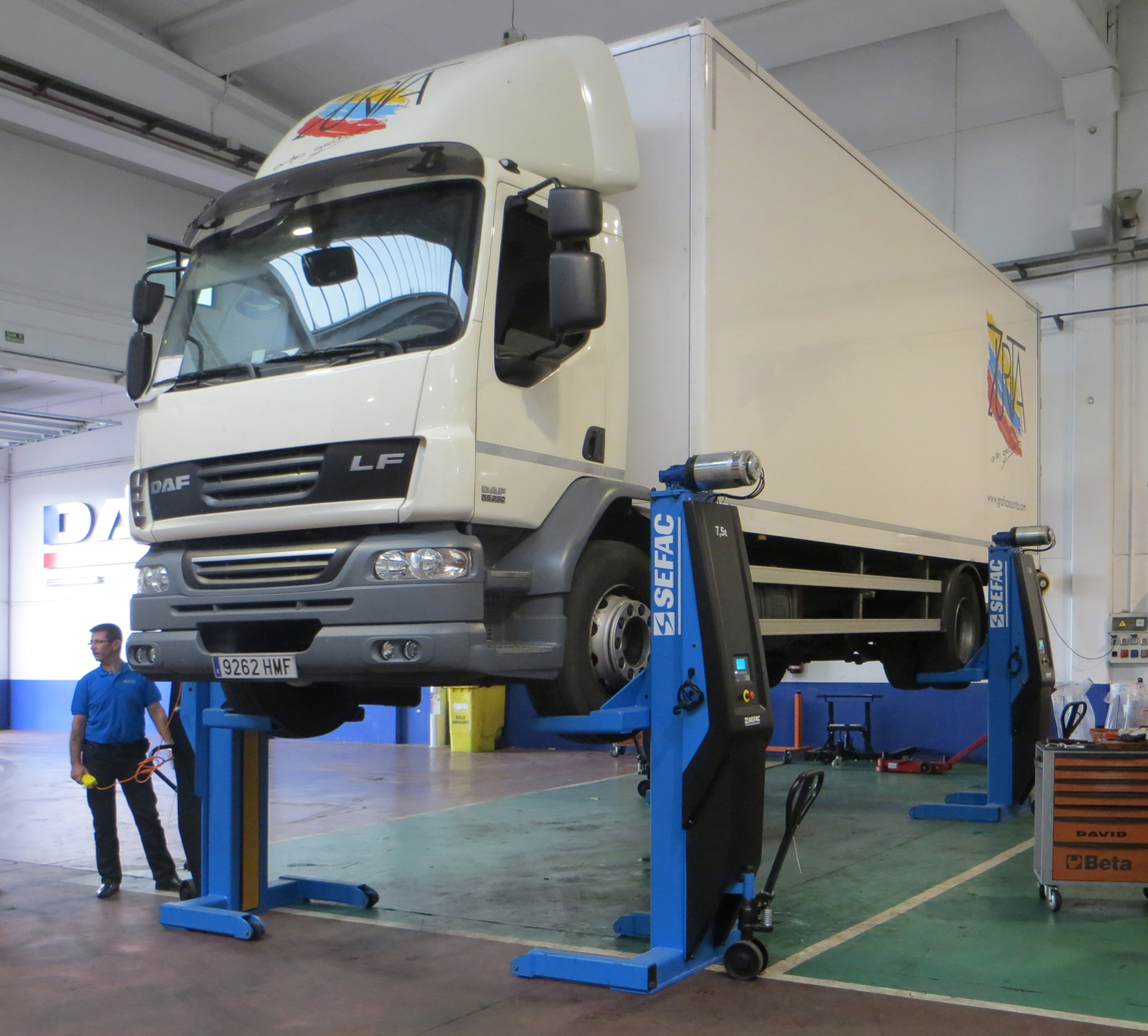

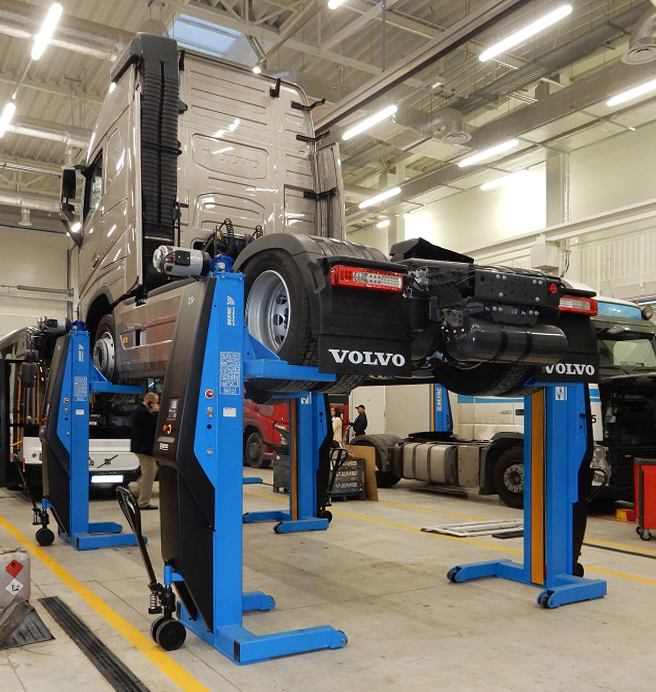

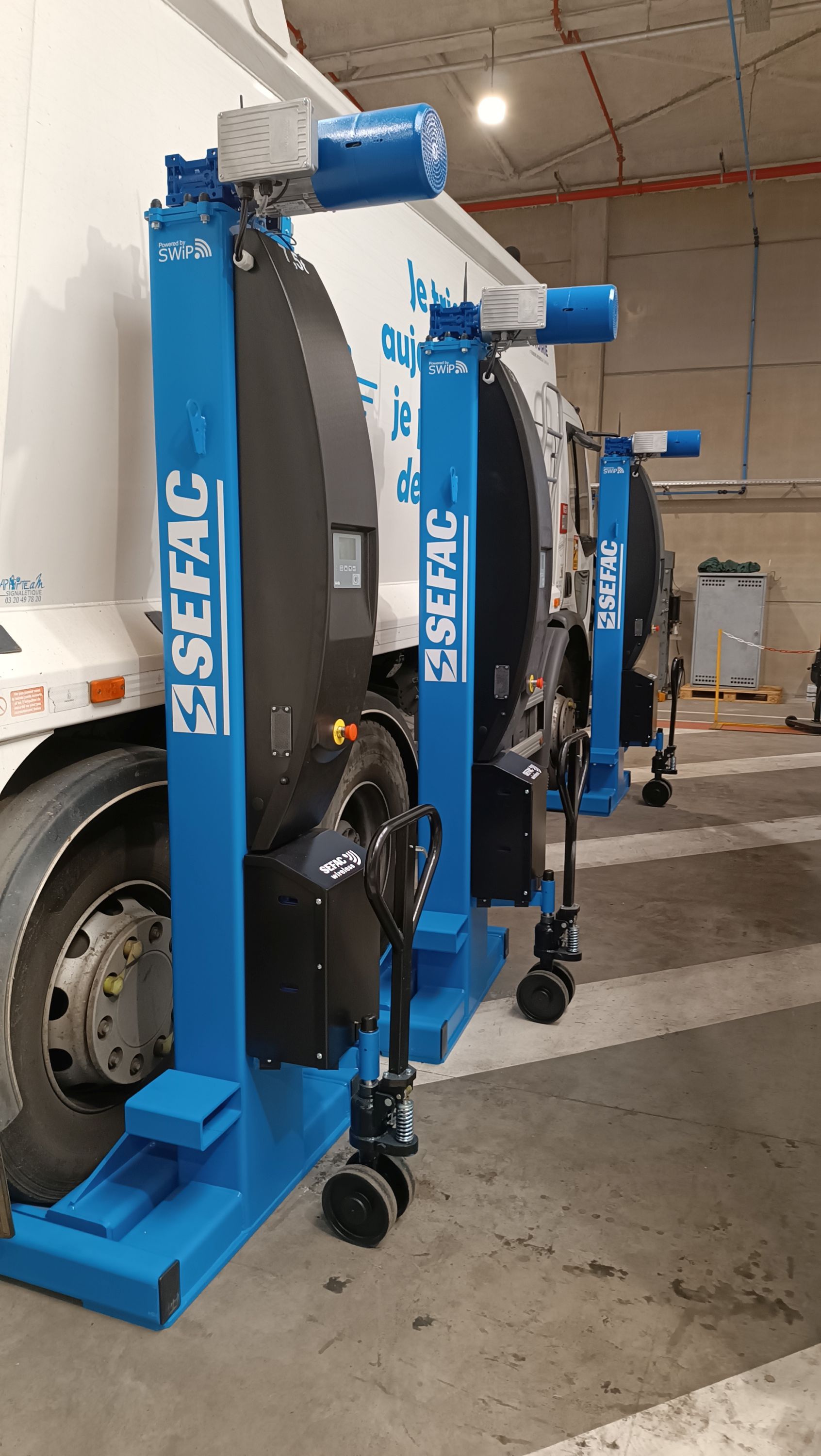

SEFAC’s wireless mobile column lifts are the lightest columns on the market and are designed to lift loads up to 7.5t per column. The lift system can be configured as a set of 4, 6 or 8 columns and can lift a wide range of vehicles with tyre diameter from 600 mm to 1,154 mm*.

*with wheel adaptors

The wireless mobile columns are equipped with the patented SWIP communication protocol which allows the columns to communicate with each other without interference. The columns benefit from enhanced precision and synchronization.

SEFAC++ features

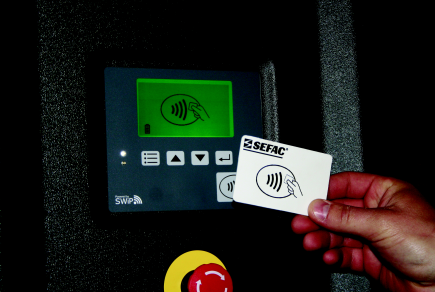

  • LCD screen
  • Very high precision levelling
  • Hive technology; all columns communicate in synchronicity with no need for primary or secondary assignations
  • Set can be operated from any column
  • Simple and quick battery charging
  • Reverse pallet truck-type drawbar, deadman’s control
  • No risk of load-dr with the safety catch
  • Obstacle detection
  • Capture cone; an additional physical safety in the unlikely event of extreme overload causing screw to break
  • Electrical protection: IP54

Read more about our technological solutions: Wireless and Ball screw

Technical characteristics

PME 75 SW
Capacity per column 7,5t
Configuration (number of columns connected) 2 / 4 / 6 / 8
Operating mode Individual, pair, set
  Wireless
Control mode Remote control
Screen Yes on each column
Fork width  962 mm to 1 154 mm
Lifting speed 1 000 mm/min
Descent speed 1 000 mm/min
Lifting height 1 820 mm
Height difference correction Correction +/- 6mm
Default +/- 20mm
Spacing (l x L x h) 1 060 mm x 1 170 mm x 2 520 mm
Feet height 140 mm
Weight per column 460 kg including batteries
Engine power 1,5 kW
Protection rating IP54
Use

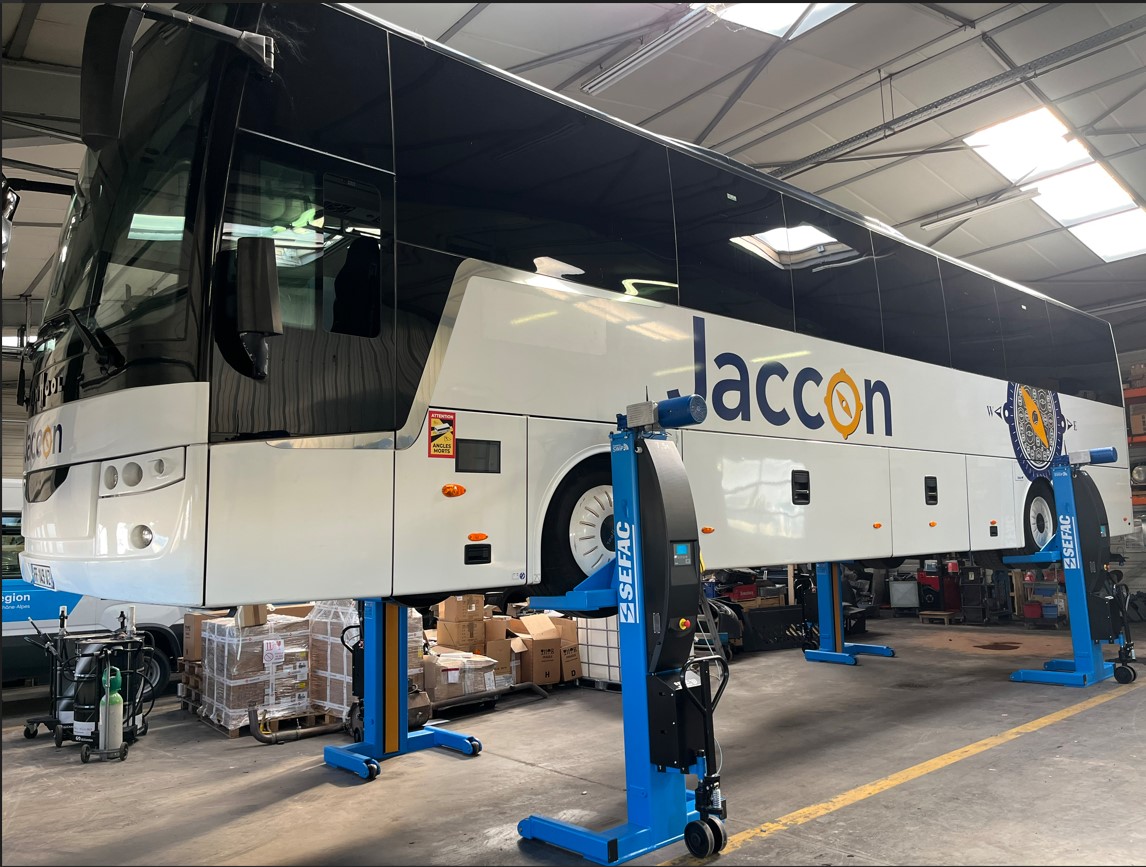

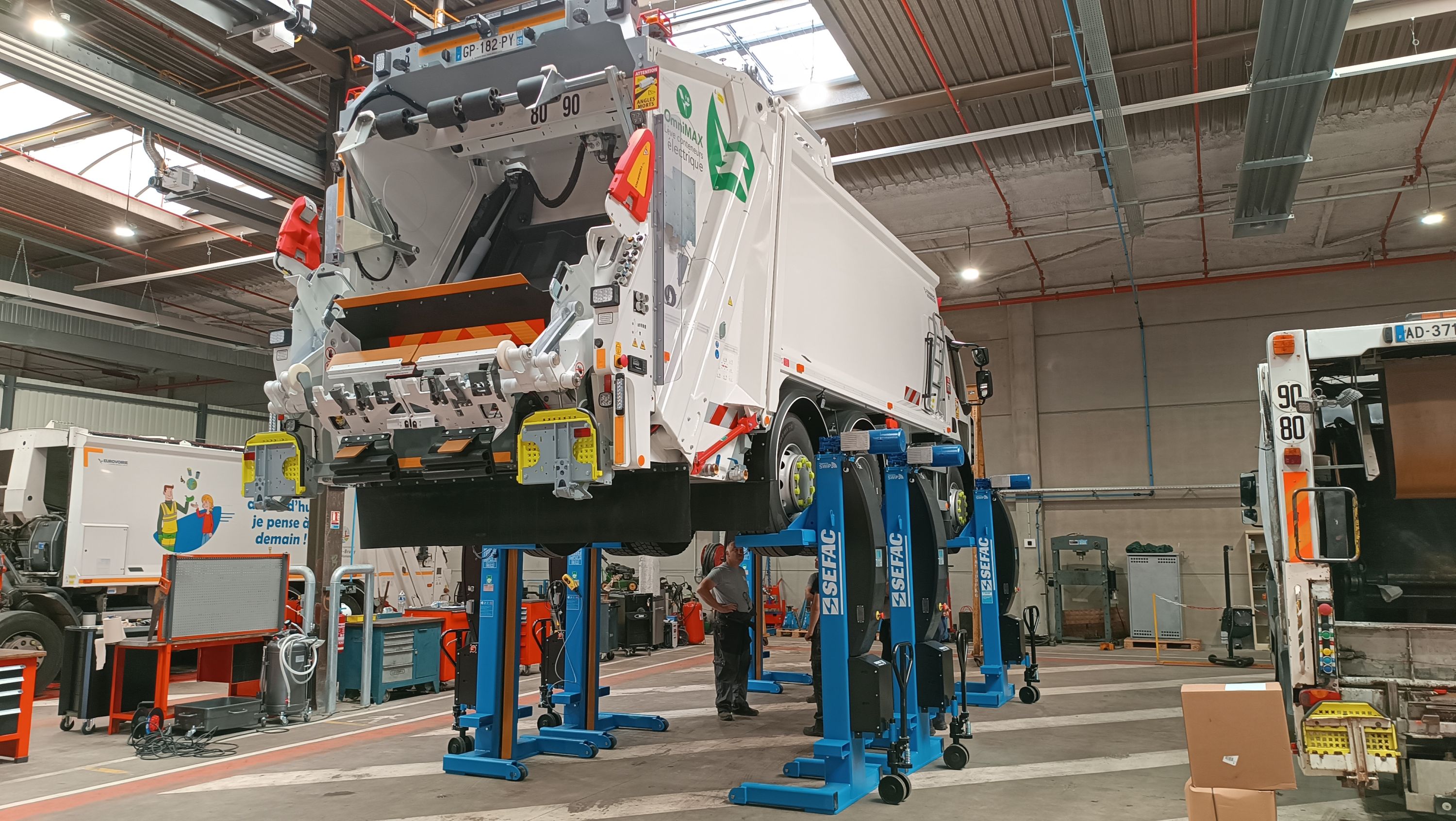

Bus, Car, Tractors, Construction machines

Options

LED lights

Wheel adapters
