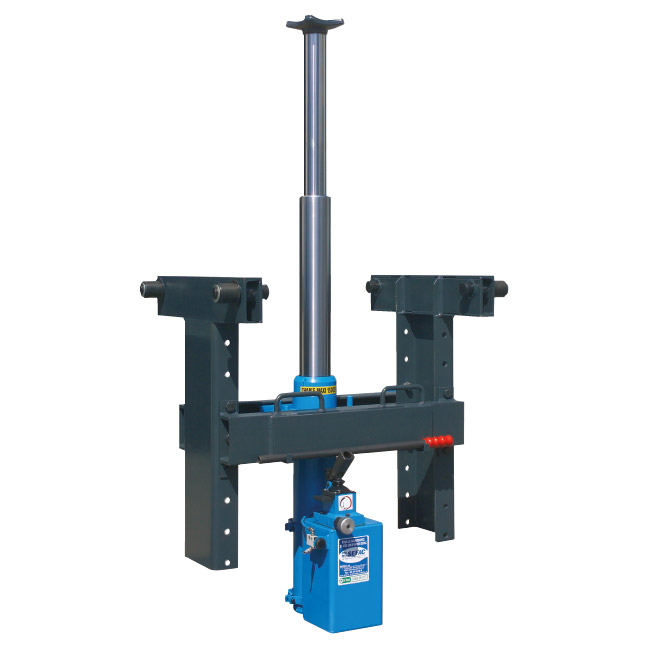

Multipurpose lifting and floor transmission jack - 15t
CBA 6515 / CBH 6515 / CBM 6515
SEFAC offers a range of multipurpose pit side jacks for lifting components and vehicles with a lifting capacity of 15t (stroke: 1,135 mm). The jack is easily moved along the rails by means of rollers. Its U shaped structure makes it possible to lift a vehicle by an axle as well as to disassemble, reassemble and handle heavy gearboxes without difficulty by adding a swivel head.
This equipment has been designed to ensure maximum safety through the use of a speed limiter, a safety valve and a deadman’s lowering valve.
SEFAC’s multipurpose jacks are available in three versions. Please refer to the technical chart.
- Manual lifting *
- Pneumatic assistance lifting **
- Oleopneumatic lifting ***
Technical characteristics
| Reference | CBM 6515 * | CBA 6515 ** | CBH 6515 *** |
| Capacity | 15t | 15t | 15t |
| Height min | - | - | - |
| Height max | - | - | - |
| Stroke | 1 135 mm | 1 135 mm | 1 135 mm |
| Diam. 1° piston | 110 mm | 110 mm | 110 mm |
| Diam. 2° piston | 80 mm | 80 mm | 80 mm |
| Diamètre pebbles pit side | 60 mm | 60 mm | 60 mm |
| Lenght pebbles pit side | 65 mm | 65 mm | 65 mm |
|
Lenght |
- | - | - |
|
Width |
- | - | - |
|
Weight |
325 kg | 325 kg | 325 kg |
|
Pump |
Manual with 2 speeds | Pneumatic assistance for fast approach | Oleopneumatic |
* The manual version, the CBM 6515
The CBM 6515 version is the manual version of this reference. Also lifting (approaching the load or lifting the load) is done manually. It is equipped with a 2-speed pump (first speed for approach, second speed for loaded lifting).
** The version with pneumatic approach, the CBA 6515
The CFA 6150 has in addition to the CFM 6515 version a fast pneumatic approach, which will allow you to automate the lifting of the mixed cylinder until it is in contact with the load. Requires a compressed air supply of 5 to 7 bars.
*** The oleopneumatic cylinder, the CBH 6515
The CFH 6515 is the fully automated version of this reference. In a perfectly automated way, the oleopneumatic variant allows rapid approach and effortless lifting of loads by pressing a push button as well as rapid lowering of the ram loaded or unloaded. Requires a compressed air supply of 8 to 12 bars.
