Column lift for special vehicles - 8,2t
1600M82

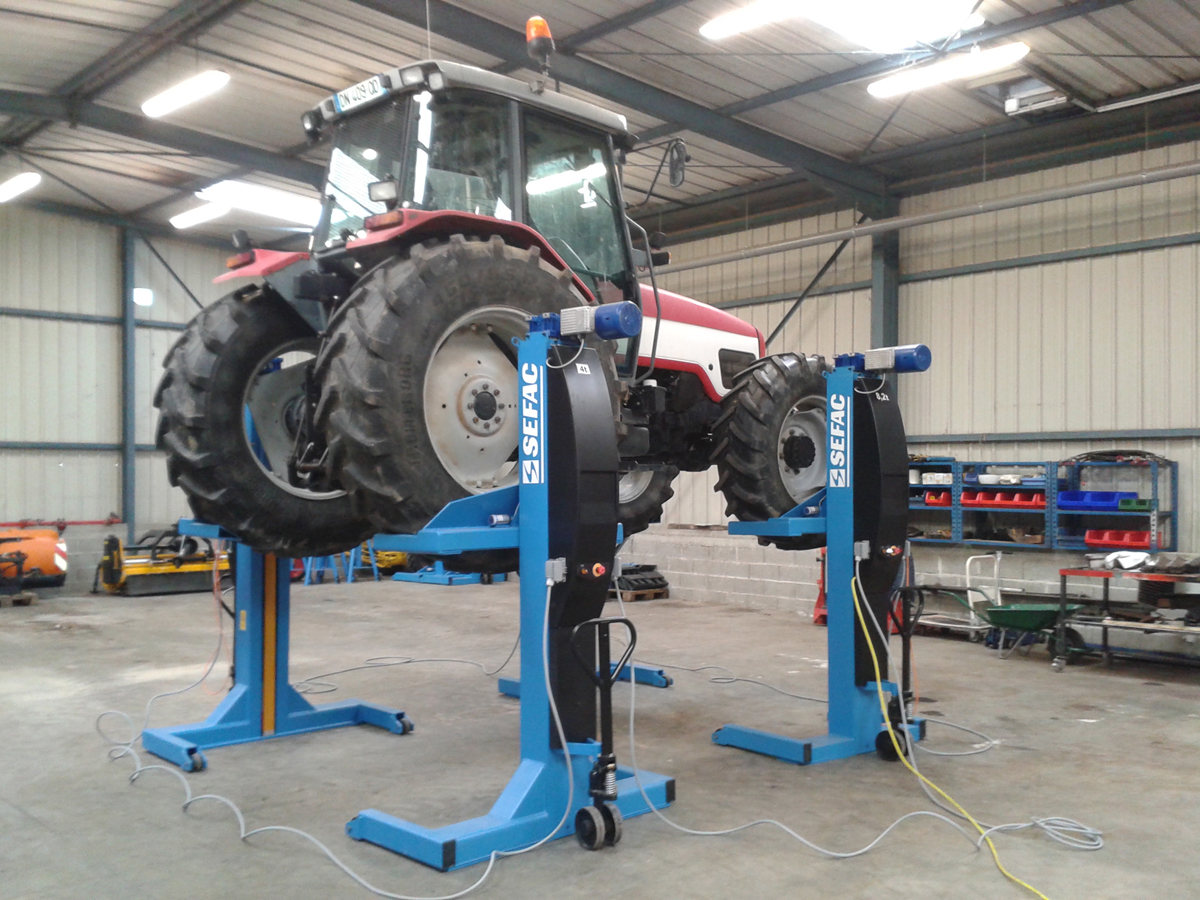

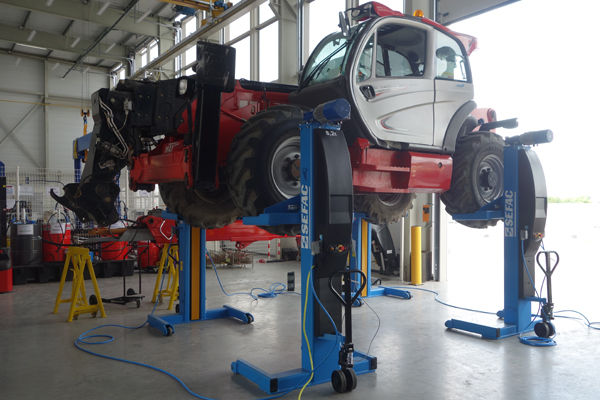

SEFAC has developed a range of mobile column lifts for special vehicles such as military vehicles, agricultural vehicles or public works vehicles. The 1600M82 column lift is engineered for vehicles with a tire size between 1,150 and 1,486 mm and has a lifting capacity of 8.2t per column.
SEFAC++ features
- The lightest columns on the market, streamlined by design and easy to manoeuvre
- Irreversible system that prevents the risk of falling
- Maximum safety for operators
- Reverse pallet truck-type drawbar, deadman’s control
- Obstacle detection
- Patented bronze nut quick change device, worn nuts can be changed at your site within minutes
- Electrical protection: IP54
Read about our technological solutions: Screw/nut system

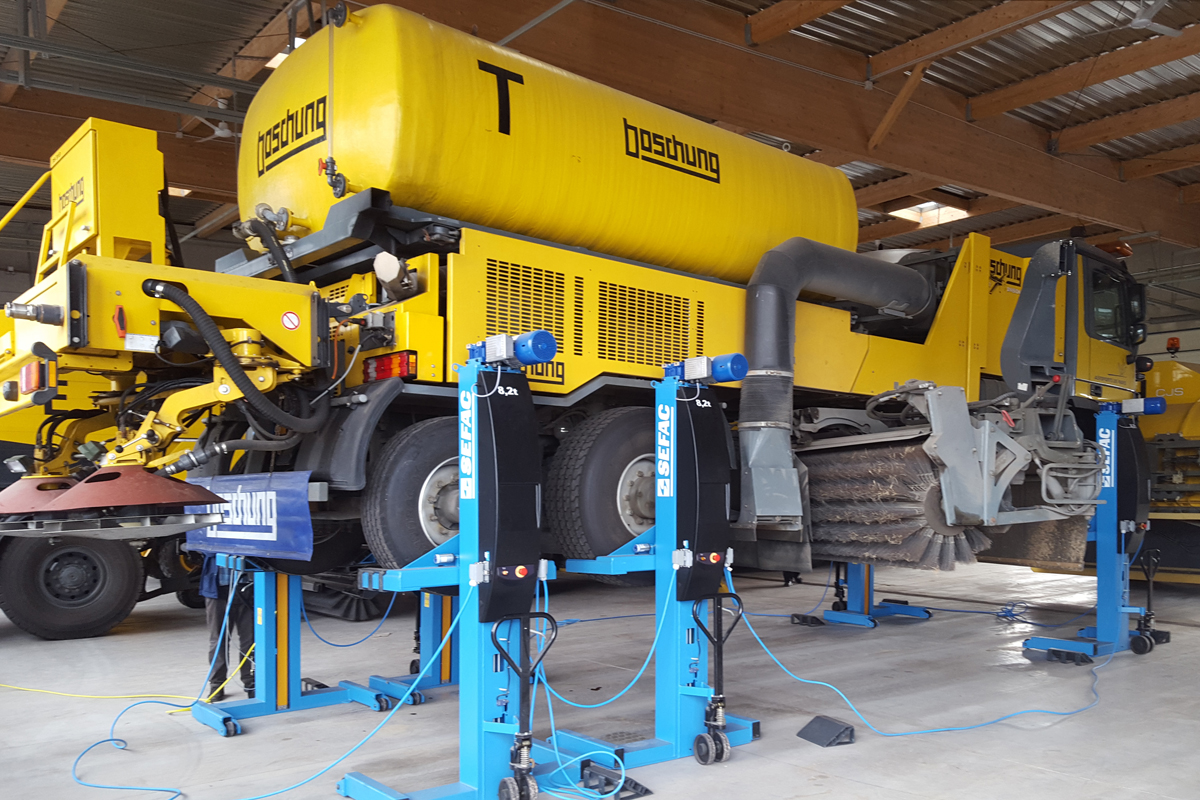

SEFAC offers column lifts for airport vehicles and other specific specific vehicles. Contact us to discuss your specific project!
Technical characteristics
| Reference | 1600M82 |
| Capacity per colums | 8,2t |
| Configuration (number of columns connected) | 2 / 4 / 6 |
| Connection mode | Loop - Wired |
| Operating mode | Individual, pair, set |
| Control mode | Push button + Remote control |
| Screen | No |
| Fork width | 1 150 to 1 486 mm |
| Lifting speed | 680 mm/min |
| Lifting height | 1 820 mm |
| Spacing | 1 250 l (mm) |
| x 1 100 L (mm) | |
| x 2 535 h (mm) | |
| Feet height | 140 mm |
| Weight per column | 415 kg |
| Engine power | 2,9 kW |
| Protection rating | IP54 |
| Sound level | < 75 dB |
