Column lift for forklifts - With side grip
600M40

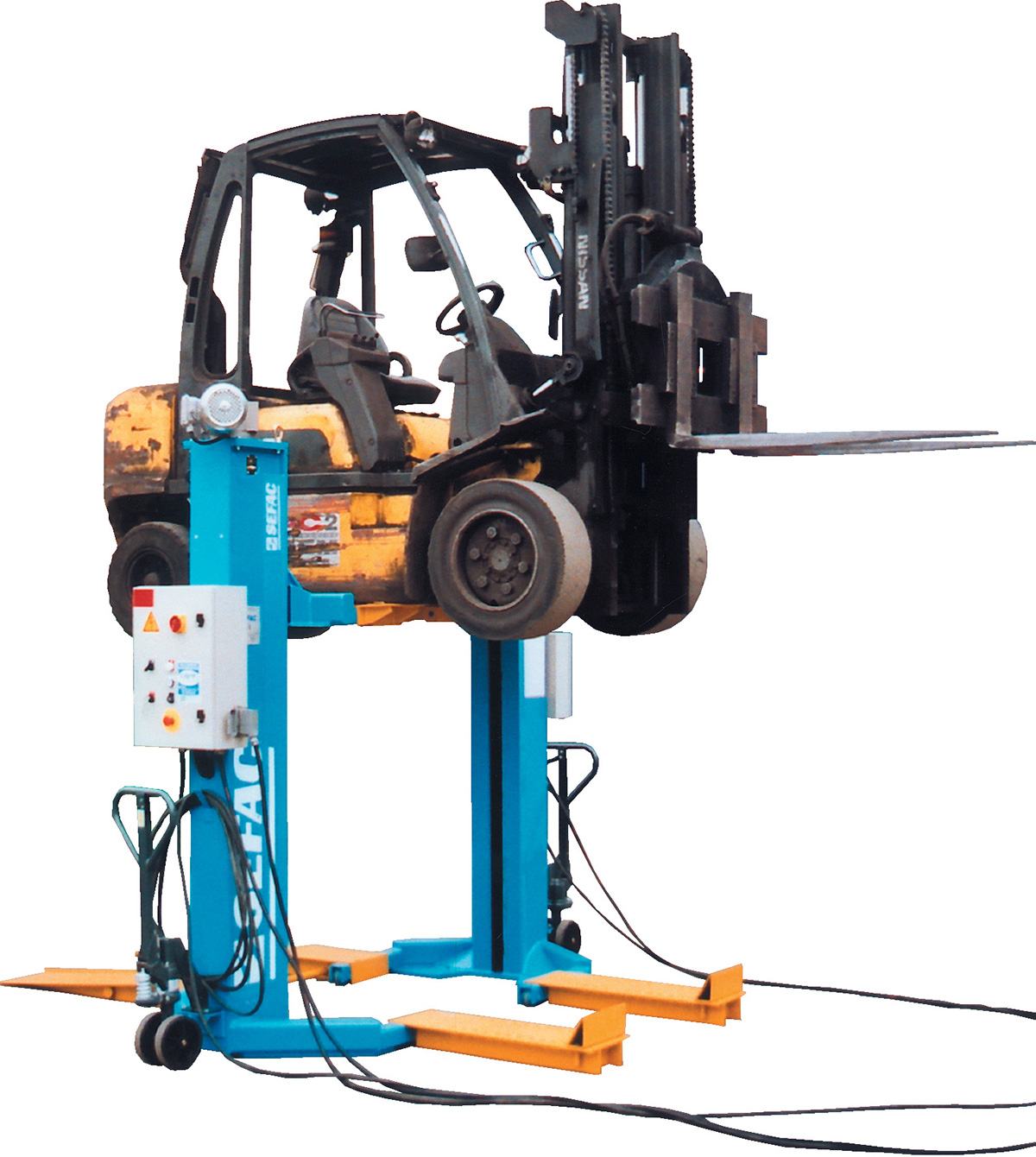

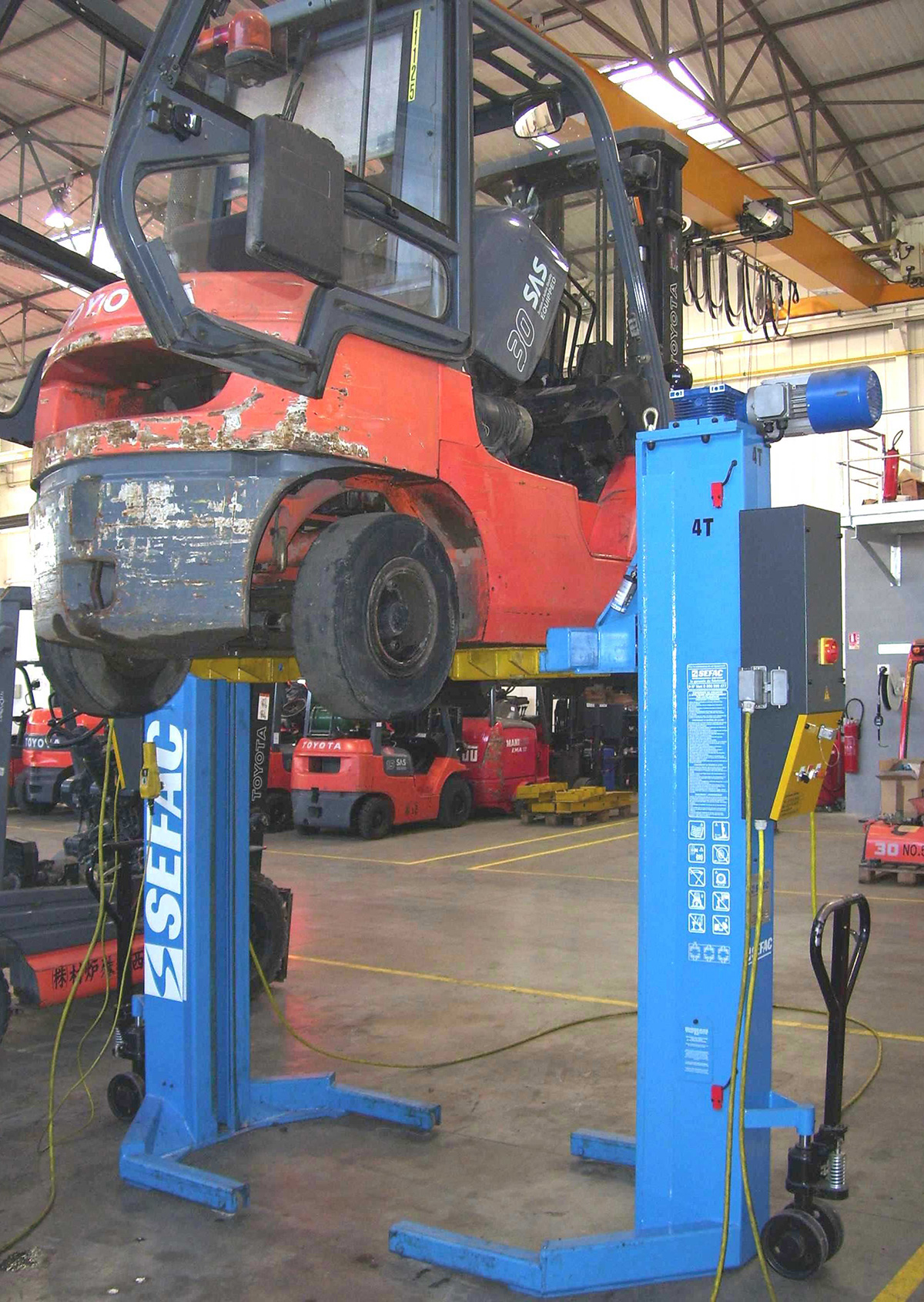

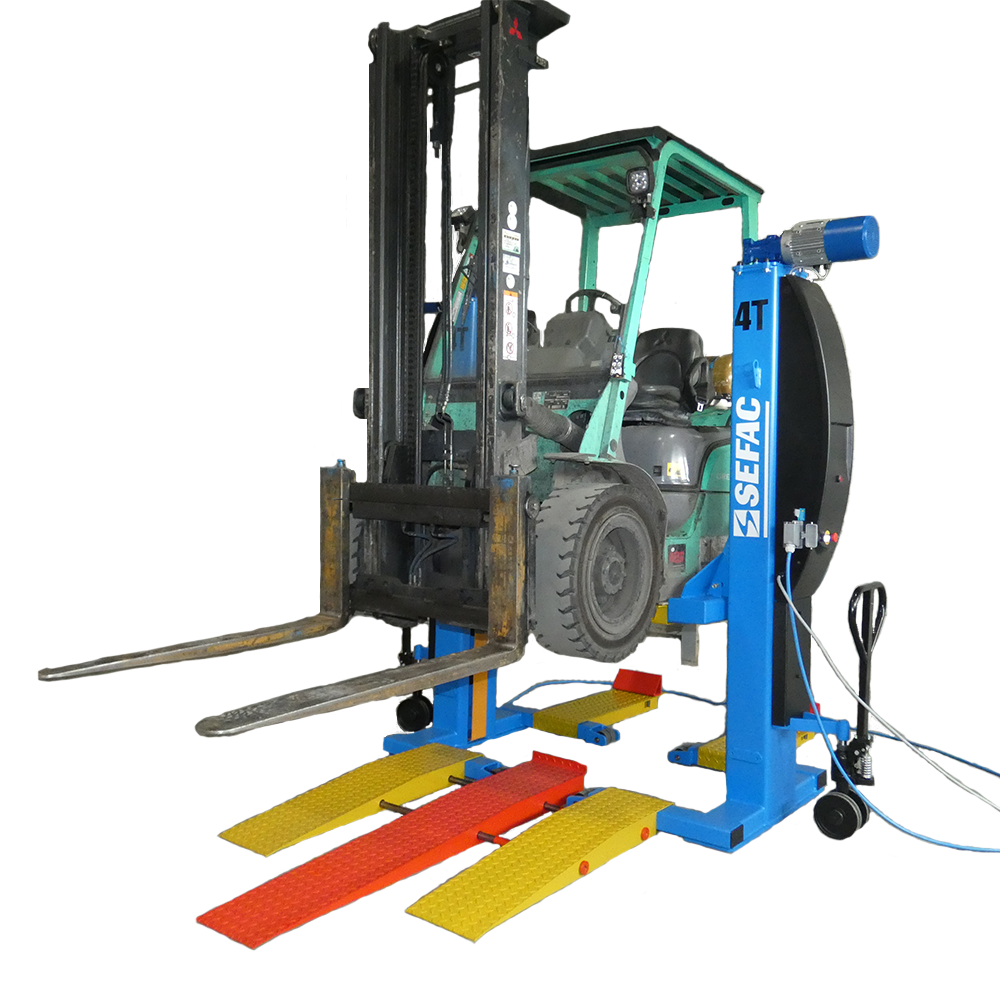

SEFAC has designed a range of column lifts specifically for the maintenance of forklifts. The 600M40 8 tons (2x4t) column lifts have been developed to lift 3 and 4-wheeled forklifts from the sides. The forks have been engineered to accommodate all types of forklifts, providing time savings, flexibility and versatility to your maintenance shop.
The 2 columns are connected by a cable to operate as a pair using a switch placed on the main column. It has a wired remote control that can be connected and used on both columns.

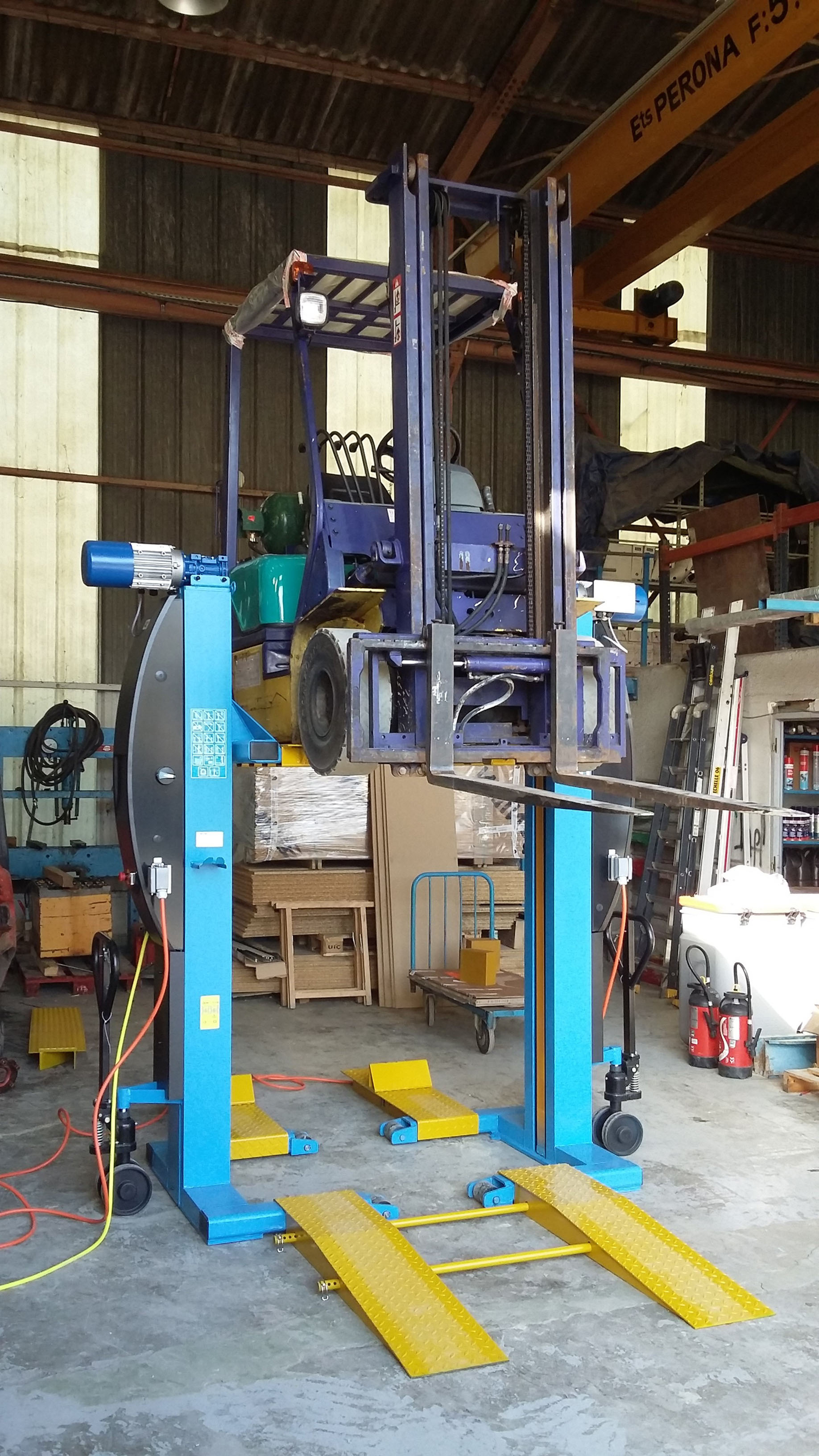

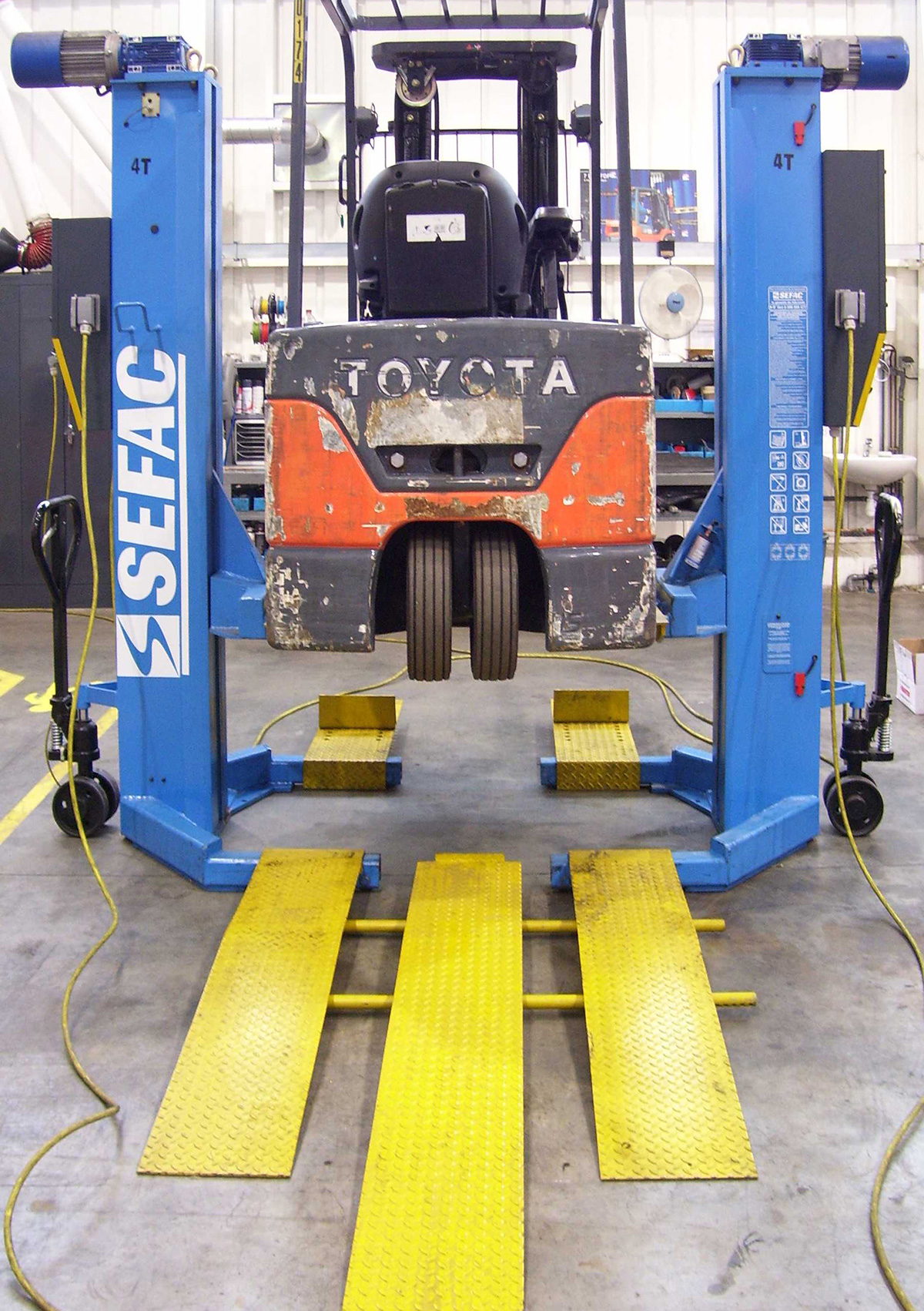

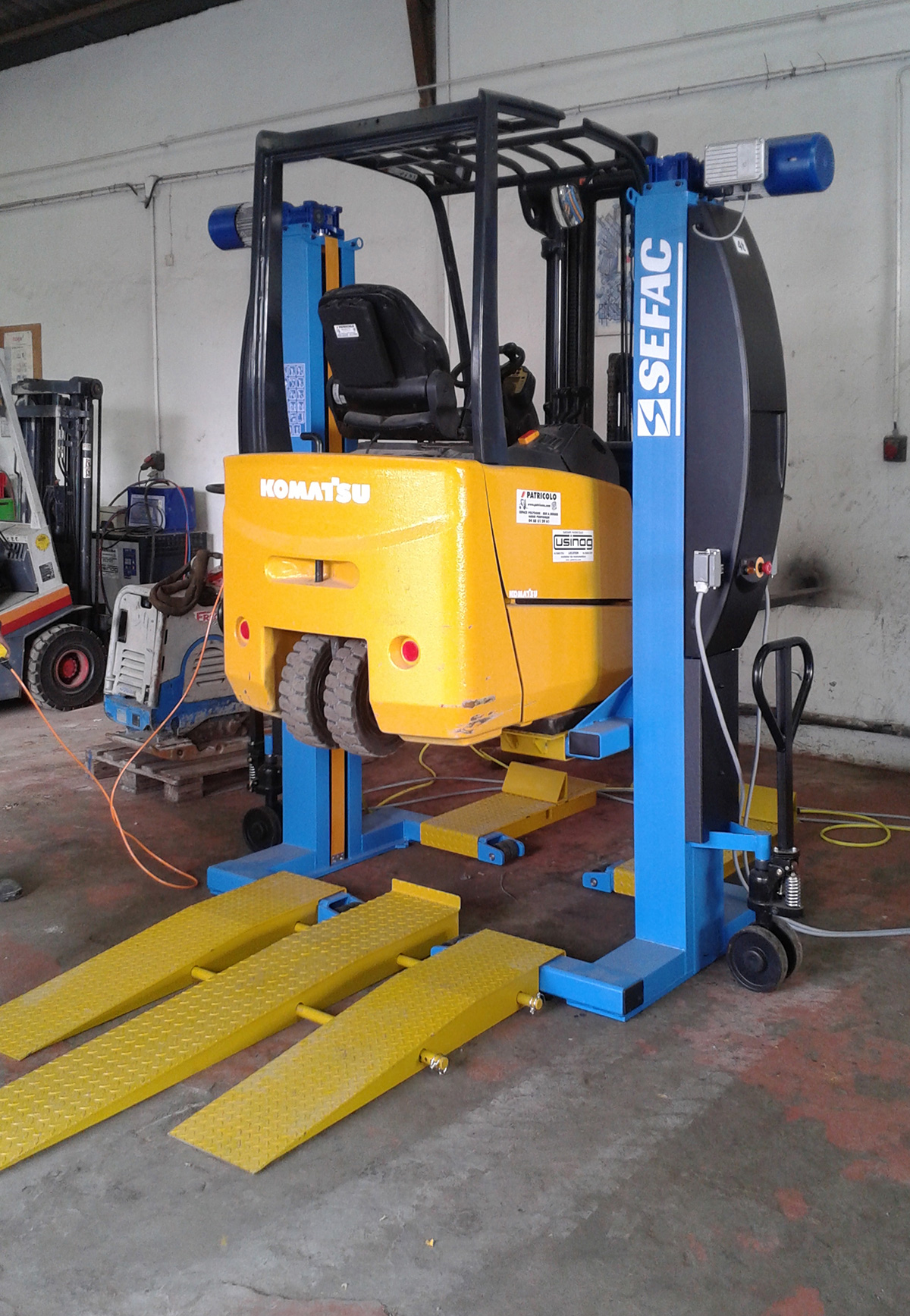

The 600M40 column lifts have one access ramp each to facilitate the lifting of 4 wheel trucks with low ground clearance. They are delivered with their crossbeam (2 in pair) to be put on the forks for the grip under the forklift chassis.
SEFAC++ features
- The lightest columns on the market, streamlined by design and easy to manoeuvre
- Irreversible system that prevents the risk of dropping
- Maximum safety for operators
- Reverse pallet truck-type drawbar, deadman’s control
- Obstacle detection
- Patented bronze nut quick change device, worn nuts can be changed at your site within minutes
- Electrical protection: IP54
Read about our technological solutions: Screw/nut system
Technical characteristics
| Reference | 600M40* |
| Capacity per column | 4t |
| Operating mode | Individual, set |
| Control mode | Push button |
| Grip | Side grip |
| Lifting speed | 500 mm/min |
| Descent speed | 500 mm/min |
| Lifting height | 1 820 mm |
| Height difference correction |
Correction +/- 18 mm
|
| Spacing | 1 045 l (mm) |
| x 1 140 L (mm) | |
| x 2 475 h (mm) | |
| Feet height | 115 mm |
| Weight per column | 385 kg |
| Engine power | 2,2 kW |
| Protection rating | IP54 |
*We recommend checking the following before choosing 600M40 columns:
- The weight on the axles and/or front/rear load distribution;
- The height of the low point of the mast in relation to the access ramps;
- The height of the building;
- The electrical power available;
- The slab that receives our columns must be in good condition;
