Lifting equipment for Heavy Duty vehicles

Lifting table

DFM 6215 / DFH 6216

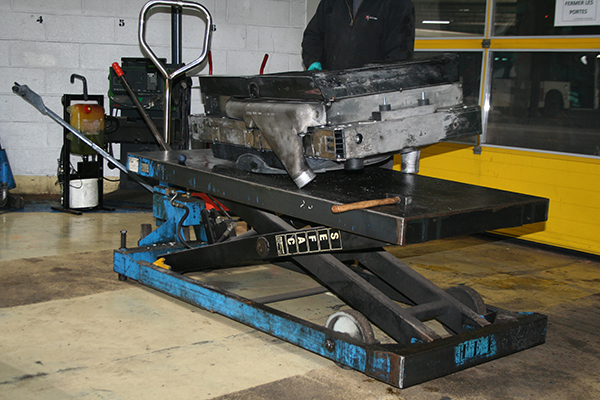

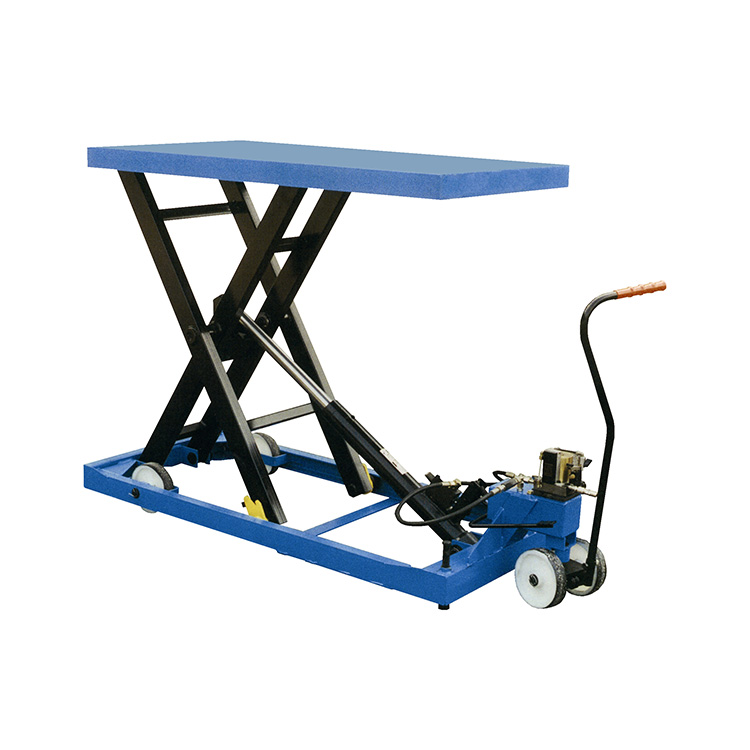

SEFAC range of lifting tables are designed to safely lift, lower or level heavy loads of up to 1,5 t. The lifting height is 1,400 mm with a platform of 1,800 mm x 60 mm so that your mechanics can perform removal operations at a comfortable height. These scissors lifting tables provide relief from load constraints while protecting users from musculoskeletal disorders.

This equipment has been designed to offer occupational comfort, reliability and safety through the adjustable stops that hold the table in the desired position.

Our lifting tables are available in 2 versions. Please refer to the technical chart.

  • Manual lifting *
  • Hydropneumatic lifting **

Technical characteristics

Reference DFM 6215 DFH 6216
Capacity 1,5t 1,5t
Dim. table 1 600 x 800 mm 1 600 x 800 mm
Height max. 1 400 mm 1 400 mm
Height min. 400 mm 400 mm
Ground clearance 50 mm 50 mm
Overall dimension 800 x 2 070 mm 800 x 2 070 mm
Weight 282kg 292kg
Pump Manual Hydropneumatic
