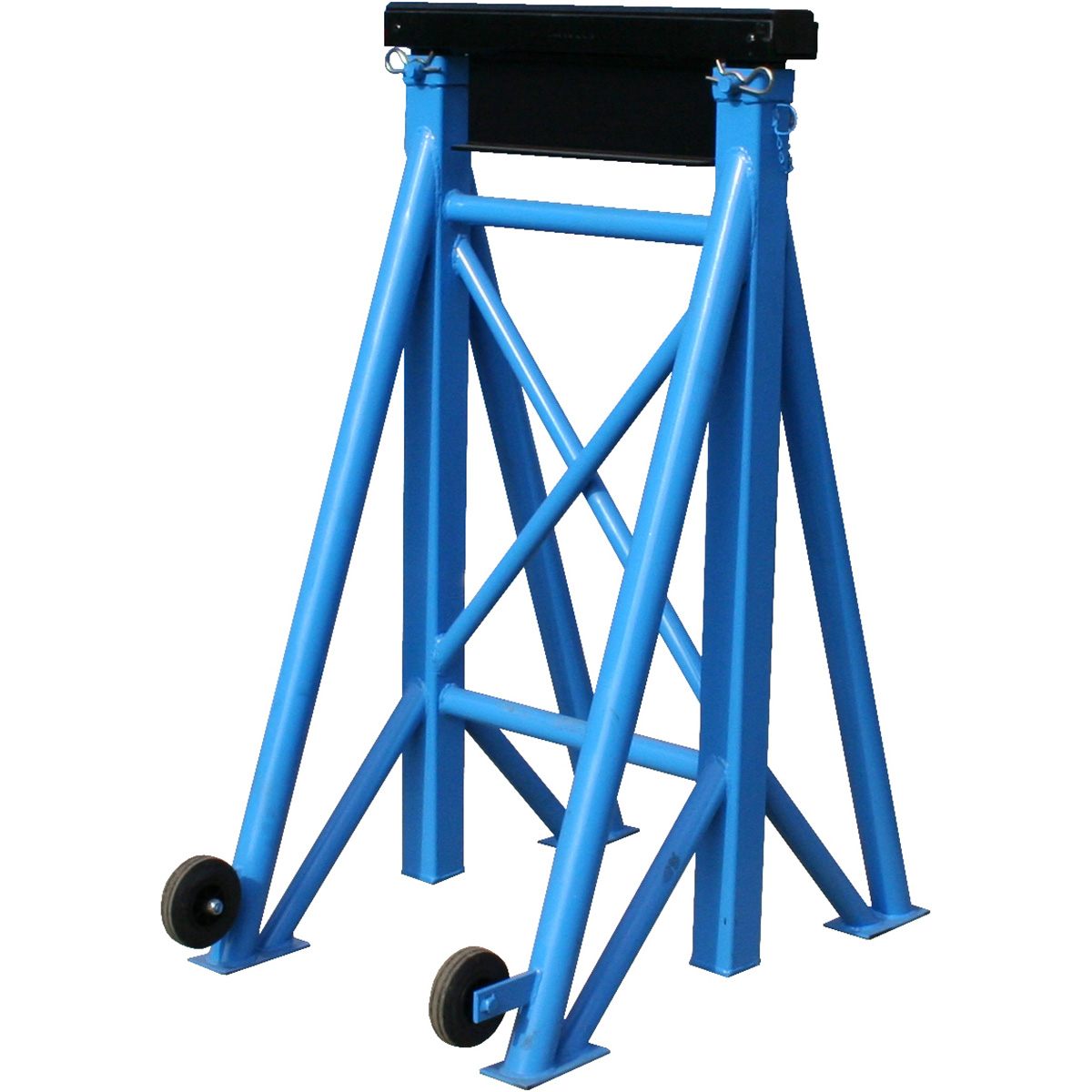

Trestle
SEFAC offers a range of 14t capacity trestles with lifting heights from 320 mm to 1,820 mm. This equipment has been designed to securely jack up heavy vehicles. SEFAC trestles are suitable for tracked vehicles and semi-trailers.
The TAE 512 and TAE 516 trestles have 4 collapsible swivel wheels which can be retracted under load (minimum 120 kg) as an option. The TAE 516 trestles have been designed with two springs for easy positioning.
SEFAC++ fetaures
- Optimum safety
- Robust
- Reliable
- Ergonomic workstation to limit the risk of musculoskeletal disorders
Technical characteristics
| Reference | TAE 511 | TAE 512 | TAE 515 | TAE 516 |
| Capacity | 14t | 14t | 14t | 14t |
| Height min. | 320 mm | 520 mm | 1 300 mm | 1 320 mm |
| Height max. | 470 mm | 820 mm | 1 850 mm | 1 750 mm |
| Lenght | 365 mm | 470 mm | 690 mm | 1 200 mm |
| Stroke | 150 mm | 300 mm | 550 mm | 430 mm |
| Positions | 4 | 7 | 12 | 7 |
| Weight | 19 kg | 31 kg | 70 kg | 100 kg |
| Options | 4 retractable swivel wheels (which retract under 120kg load) |
