Lifting equipment for Heavy Duty vehicles

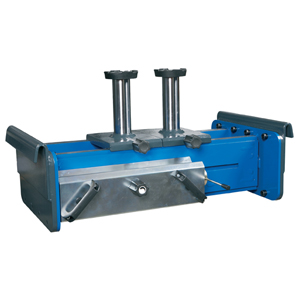

Hydraulic jack - 20t

CBH 6720

SEFAC offers the CBH 6720 jack with a capacity of 20t and a stroke of 200 mm for lifting vehicles with low ground clearance such as coaches or buses for tire maintenance.

The telescopic frame of the CBH 6720 jack easily adjusts to all workshop pits without changing the existing pit structure or the rail track.

SEFAC’s hydraulic jack are fitted with two jacks for greater stability, efficiency and safety during operation. These jacks can be used separately or at the same time to lift one or both sides of the vehicle and to correct any difference in level between the gripping points (max. 10t per jack).

SEFAC++ features

  • Deadman’s control
  • Optimum safety
  • Maximum stability
  • Easy to implement
  • Telescopic frame which adapts to the pit or the rail track



Technical characteristics

Reference CBH 6720 *
Capacity 20t
Lenght min 590 mm
Lenght max 1 150 mm
Pit depth min -
Stroke 200 mm
Weight 202 kg
In between spacing min 200 mm
In between spacing max 898 mm
Motorisation -
Options

2 different types of plates, V-shaped or U-shaped2 types of extensions (100 mm and 200 mm)

*Air pressure required: 8 to 12 bar.
