Bogie drop table

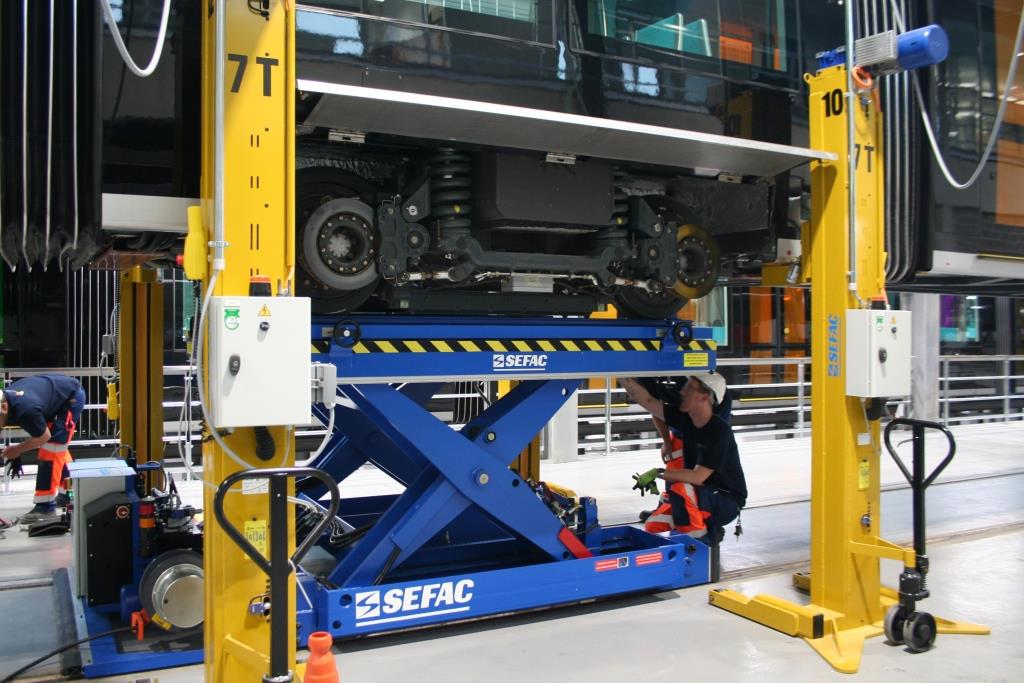

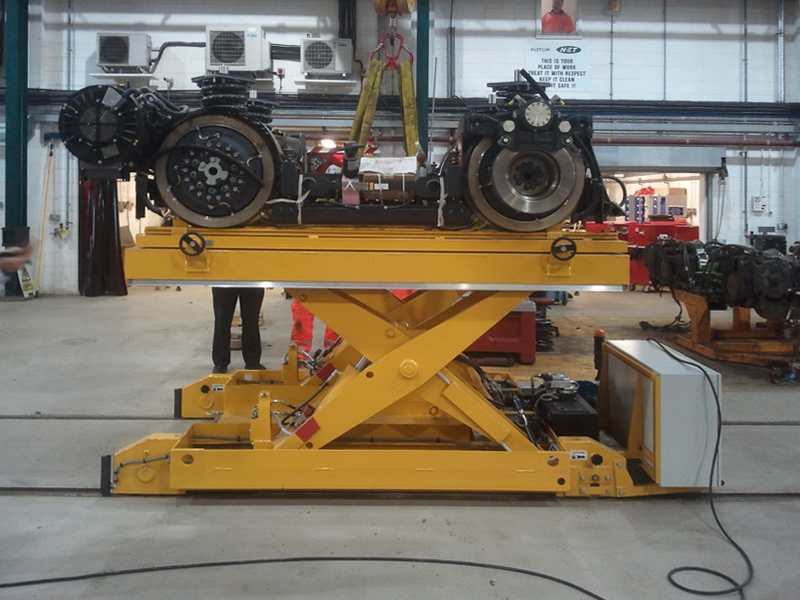

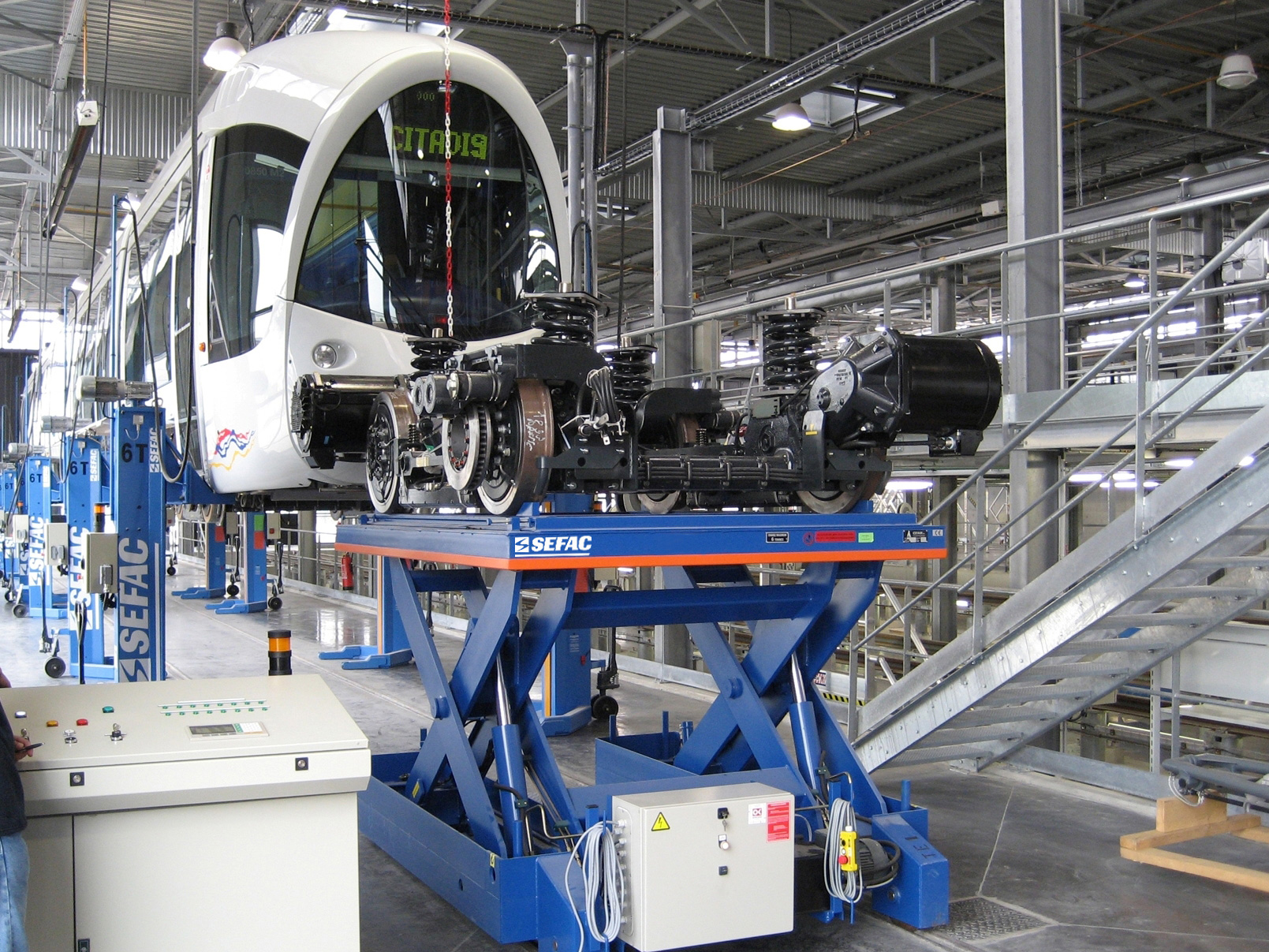

The bogie drop table is used to remove/install a bogie of a tram or a train lifted by column lifts. There are 2 capacities: 6 tons and 8 tons. Our 2 models have a U-shaped cutout allowing operators to access under the bogie during removal or installation.
SEFAC offers you this tailor-made configurable solution. Contact our team of experts to discuss your project!

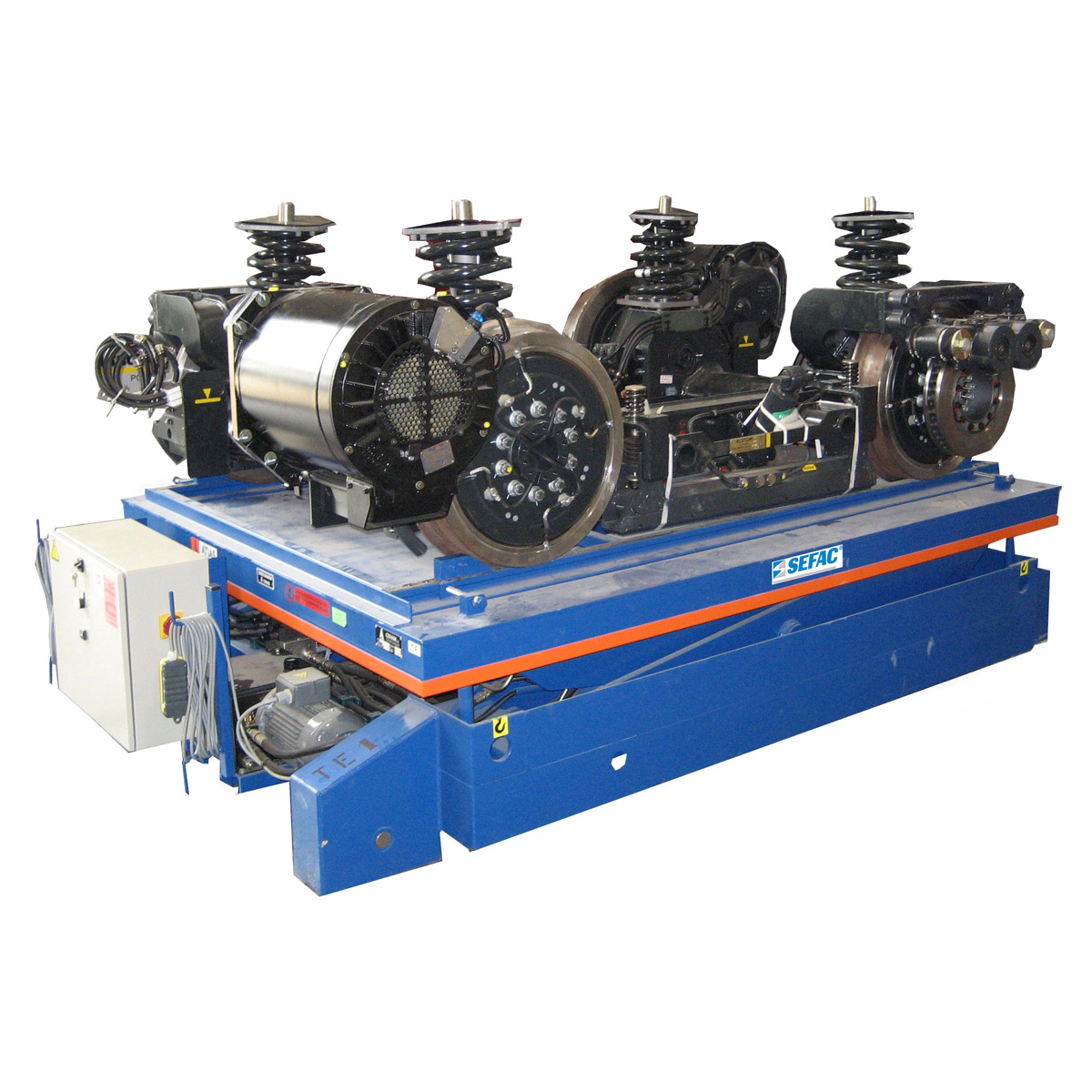

Technical characteristics
| Reference | TDB 6T | TDB 8T |
| Capacity |
6t |
8t |
| 2 versions |
Version 1: All autonomous: Elevation + Movement on the rails of the workshop Version 2: Semi-autonomous: Elevation taken from the workshop. Traveling with on-board batteries |
Version 1: All autonomous: Elevation + Movement on the rails of the workshop Version 2: Semi-autonomous: Elevation taken from the workshop. Traveling with on-board batteries |
| Hight point | 1680 mm | 1950 mm |
| Bogie removal/installation height | 1455 mm (TBD on request) | 1350 mm (TBD on request) |
| Low point | 690 mm | 950 mm |
| Overall length | 3740 mm | 4206 mm |
| Overall width | 1900 mm | 1900 mm |
| Sliding of the bogie on the table top | +/- 25 mm and +/- 1,5° | +/- 25 mm and +/- 1,5° |
| Tension |
400V/50Hz TRI – 4 kW (in semi-autonomous mode – Connect the elevation plug) 220V mono (in fully autonomous mode). A battery charging box is supplied with the bogie removal table. |
400V/50Hz TRI – 4 kW (in semi-autonomous mode – Connect the elevation plug) 220V mono (in fully autonomous mode). A battery charging box is supplied with the bogie removal table. |
| Control panel |

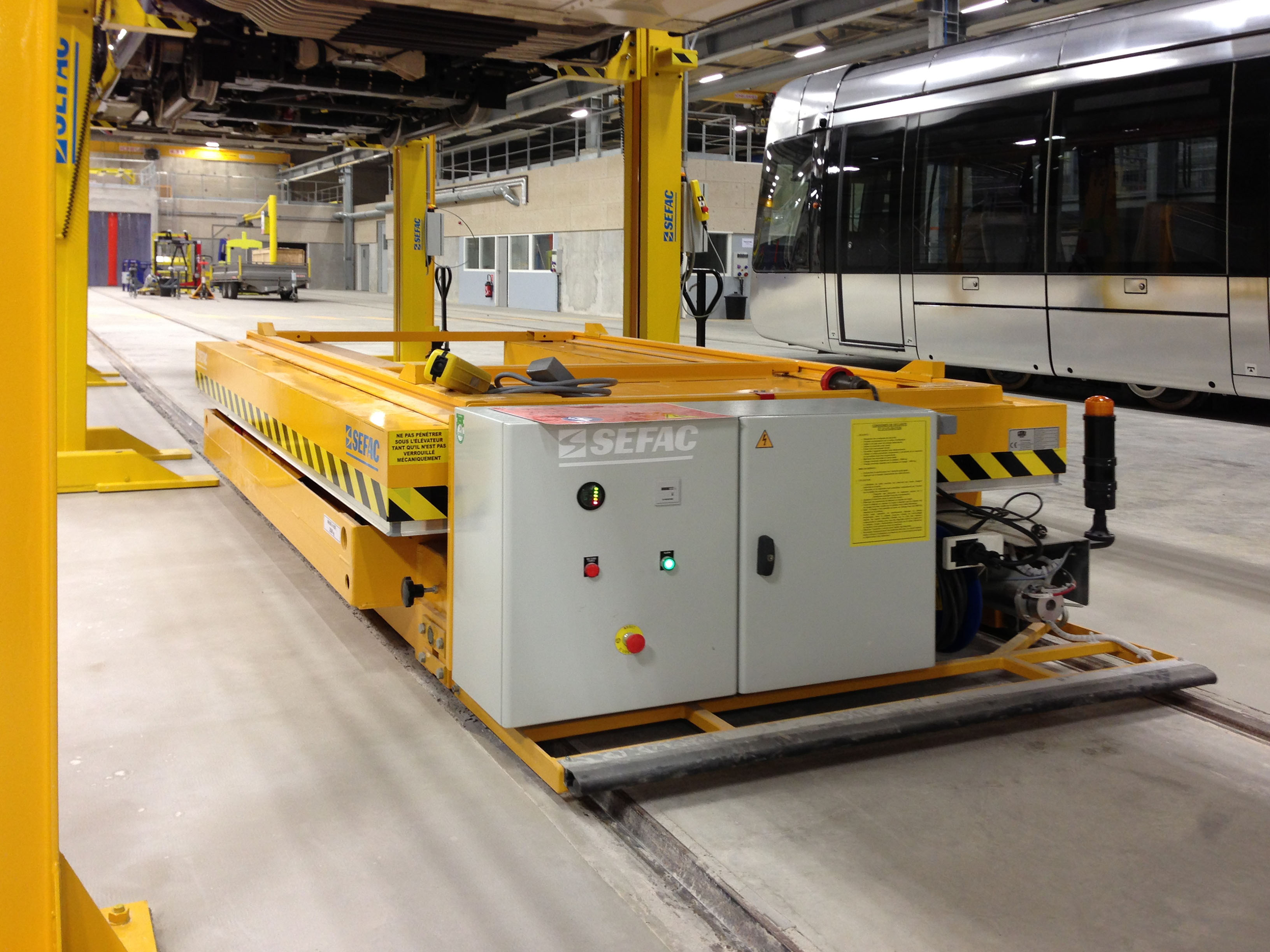

On-board power / control box Radio control Wired button box with Up, Down and Emergency Stop push buttons (3 m cable) Light and sound beacon Interchangeable mobile battery rack |
On-board power / control box Radio control Wired button box with Up, Down and Emergency Stop push buttons (3 m cable) Light and sound beacon Interchangeable mobile battery rack |
| Lifting modes | Up Down, Sideshift, Forward, Backward | Up Down, Sideshift, Forward, Backward |
| Movement speed (on batteries) |
Low speed: 2 m/min High speed: 15 m/min |
Low speed: 2 m/min High speed: 15 m/min |
| Safety |
Safety stand for table maintenance Safety valve on cylinder body Pressure limiter Emergency stop 2 locking jacks (for access under the bogie being removed) Safety frame under bogie platform 1 pressure switch calibrated at +10% CMU 5 Limit switch Front and rear sensitive edge |
Safety stand for table maintenance Safety valve on cylinder body Pressure limiter Emergency stop 2 locking jacks (for access under the bogie being removed) Safety frame under bogie platform 1 pressure switch calibrated at +10% CMU 5 Limit switch Front and rear sensitive edge |
| Safety modes |
Emergency descent in the event of a power failure Disengagement of the travel gear motor |
Emergency descent in the event of a power failure Disengagement of the travel gear motor |
| Option |
Reinforced sealing |
Reinforced sealing |
| Other |
6 ton bogie drop table designed for a turntable with a diameter of 3 meters. Front and rear pull rings |
